Description(RU-G04)

• Push-button potentiometer, surface concave-convex non-slip design, better hand feeling, more precise adjustment.

• Can be connected to wired/wireless/condenser microphones, suitable for home KTV, tuning, network host, broadcasting, recording, etc.

• Built-in reverberation effect, adjust the reverberation depth and delay effect through the knob.

• Sound card function, with the function of processing computer vocals. So you can call up professional audio.

• Multiple audio lines. 6.35 Flower Festival, fine workmanship, stable transmission.

Technical Parameters(RU-G04)

Maximum microphone input level: +24dBu
Maximum line input level: +24dBu
Maximum output level: XLR card by +26dBu
Main level meter: 10-segment LED, -24dB to CUP
Frequency response: 20Hz to 30kHz ± 0.5dB
Maximum power input power: 15W
Total wave distortion (THD+N): Less than 0.01% (channel input to mixing output)
Crosstalk (1KHZ): Fader off Greater than 85dB between channels Greater than 82dB
Noise (22HZ not 22KHZ): equivalent input noise-122dBu residual output noise Less than 90dBu
Mono/stereo
channel EQ: high frequency, broom type, +/-15dB, 12KHz low frequency,
broom type, +/-15dB, 80KHz high intermediate frequency, peak-to-valley
type, +/-15dB, 2.5KHz
Mono: XLR balanced, 2-pin hot end, 2Kohm
sensitivity -60 to +14dBu TRS balanced, tip hot end loKohm sensitivity
-40 to +14dBu XLR phantom power +48V
2-track return: RCA lotus seat, unbalanced, 4Kohm, -2dBu
2-track transmission: RCA lotus seat, unbalanced, Less than 75ohm, -2dBu
L/R output: XLR, balanced, tip hot end, Less than 75ohm, +4dBu, maximum +22dBu
FX/AUX/output: TRS, unbalanced, tip hot end, Less than 75ohm, 2dBu, maximum +18dBu
Headphones: TRS, cutting-edge L, ring R, recommended 30 to 600 ohm headphones
Microphone size: 256mm x 48mm
size:18.5x15x6.1CM
Material:Metal
colour:As shown

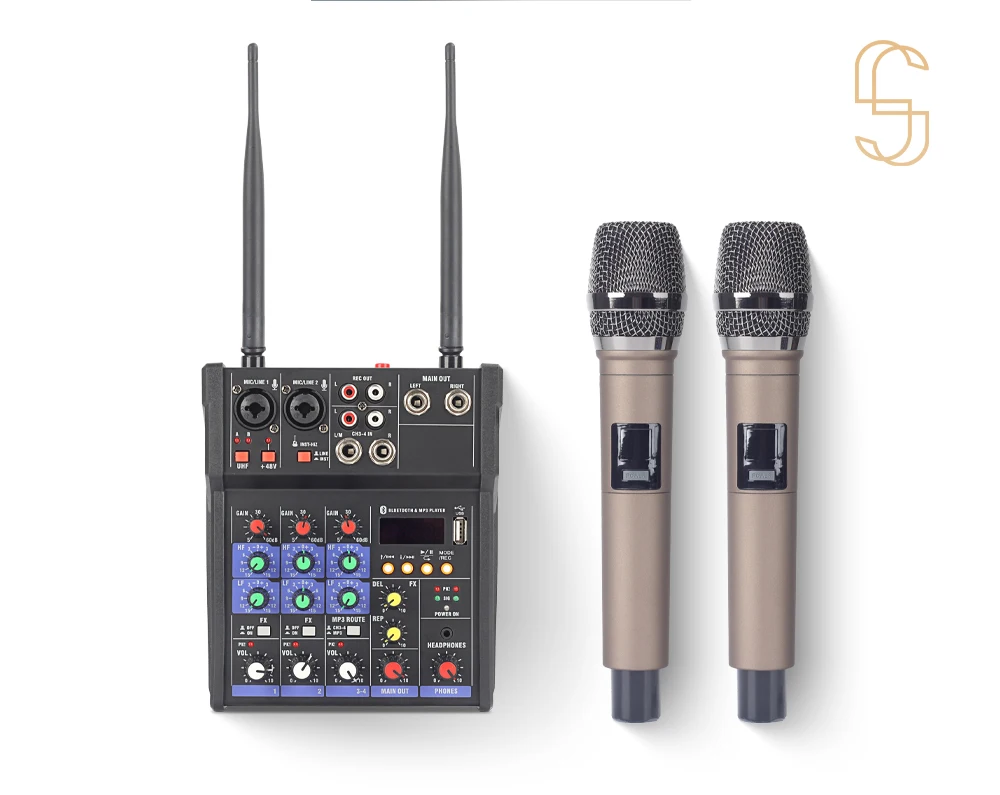

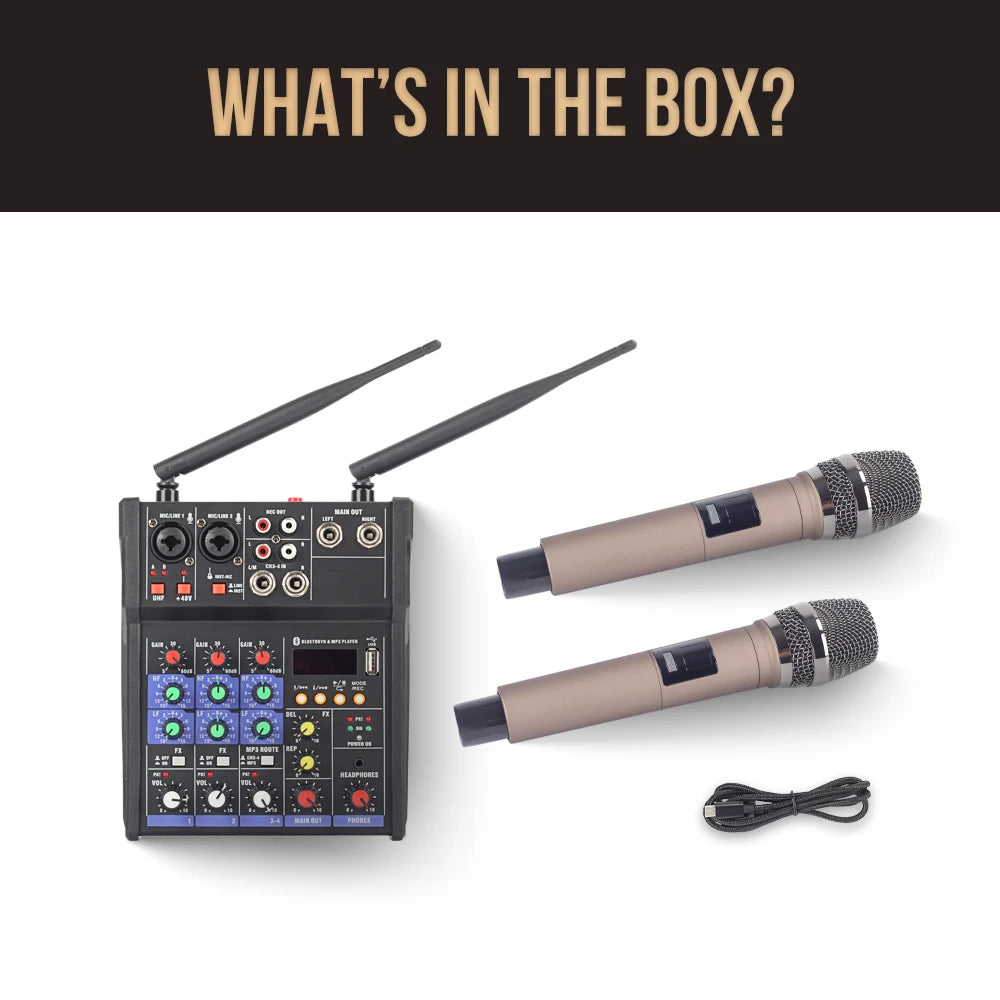

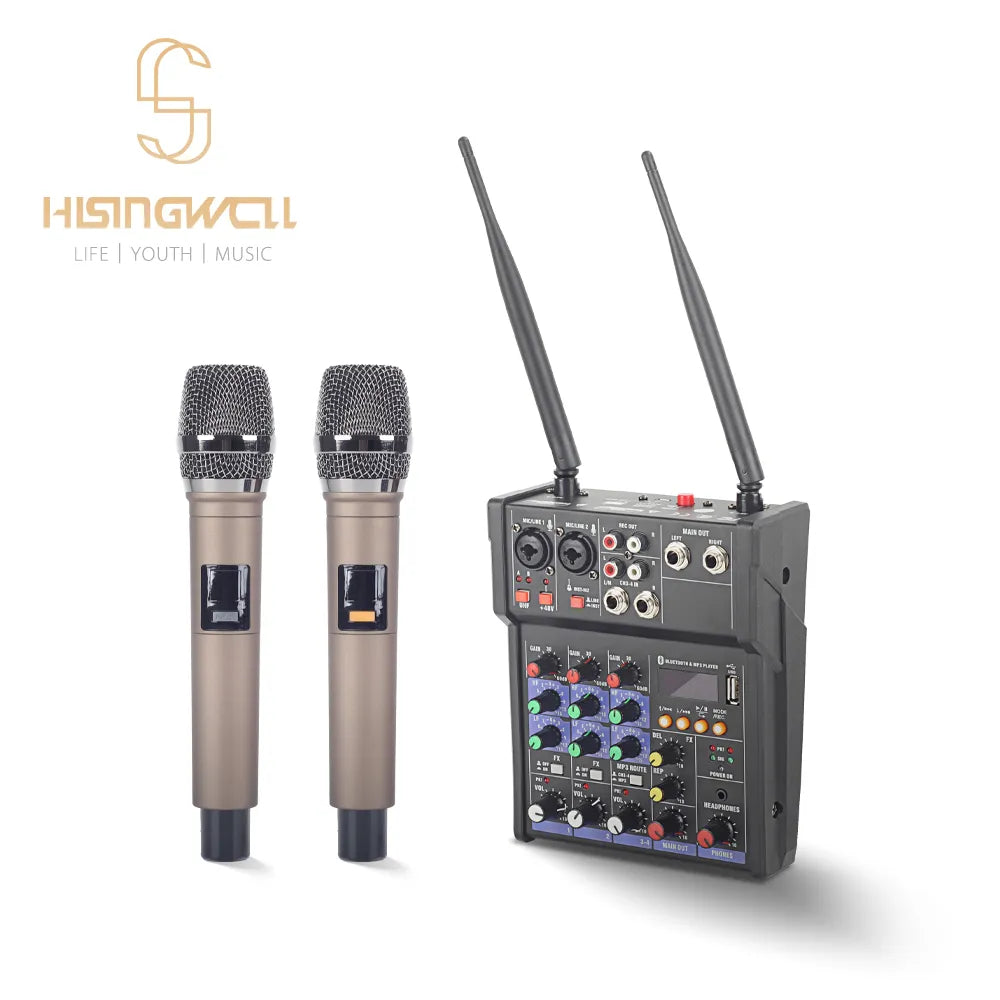

You will get

1x Mixer

2x Wrieless Microphones

1x USB data cable

1x User manual
