Reolink E Series 3MP WiFi Camera 4MP Baby Monitor 5MP Pan-Tilt IP Cam Smart AI Detection
Reolink E Series 3MP WiFi Camera 4MP Baby Monitor 5MP Pan-Tilt IP Cam Smart AI Detection
Couldn't load pickup availability
SPECIFICATIONS
High Definition: 3.0 Megapixels
Supported Operating Systems: Windows 7
Supported Operating Systems: Mac OS
Supported Operating Systems: Windows 8
Supported Operating Systems: Windows 10
Lens (mm): 2.8-8mm
Style: Box Camera
Connectivity: WIFI
Installation: Ceiling
Installation: Normal
Installation: Wall Mounted
Installation: Pendant Mount
Minimum Illumination(Lux): 0
Scene: Indoor and Outdoor
Color Night Vision: Other
Megapixels: 3MP
Storage: None
Video Compression Format: H.264
Video Compression Format: H.265
IR Distance(m): 12m
Certification: CE
Certification: FCC
Certification: RoHS
Dimensions (L x W x D)(mm): 84.7*117.8mm
Color: WHITE
Power Mode: Mains Electricity
Alarm Action: FTP Photo
Alarm Action: telefon Alarm
Alarm Action: Email Photo
Alarm Action: Local Alarm
Movement Range(Tilt): 0°-360°
is_customized: No
Model Number: E1 Series WiFi Camera
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
Smart home platform: Google Assistant
AI Functions: Human Detection
IP Rating: Other
Special Features: Waterproof / Weatherproof
App name: Other
TF Card: None
Digital Zoom: Other
Power Supply(V): 12V 1A
Audio Output: Two Way Audio
Power Consumption(W): 12W
Sensor: CMOS
Sensor Brand: Omnivision
Operating Temperature: -10°-60°
Shell Material: Plastic
Power Supply: Normal
Viewing Angle : NoEnName_Null
Optical Zoom: Other
Movement Range(Pan): Other
Rechargeable Battery: NONE
Item model: E1 Series WiFi Camera
Item type: Indoor & Outdoor camera
lens: f=2.8 - 8mm F=1.6, with IR cut
Zoom: 3X optical zoom & digital zoom
Video Format: H.264 & H.265
Field of View: Horizontal: 90°- 43° Vertical: 75°- 37°
Pan/Tilt Angle: Horizontal: 355° Vertical: 50°
Day & Night: IR-cut filter with auto-switching
Infrared Night Vision: Up to 12 meters (40ft) (LED: 12pcs/14mil/850nm)
Color Night Vision: Up to 12 meters (40ft) (LED: 4pcs/2.7W/6500K)
Browsers Supported: IE, Edge, Chrome, Firefox, Safari
OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm: Motion detection/person detection/vehicle/Pet detection
Record Mode: Motion recording (default)/scheduled recording
Protocols & Standards: HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Maximal User Access: 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work with: Google Assistant/Reolink Cloud(Except US/CA/MX)
Wireless Standard: IEEE 802.11a/b/g/n
Operating Frequency: 2.4GHz/5GHz

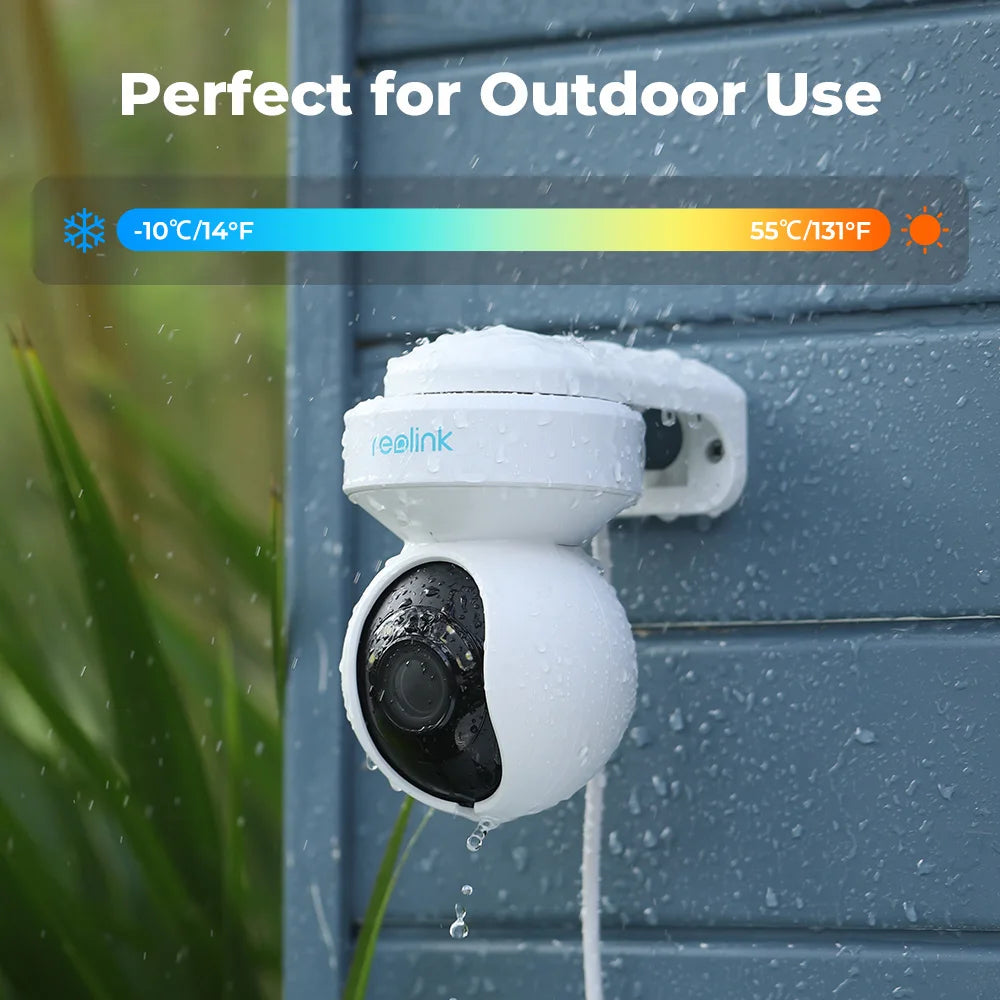

Temperature: Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity: Operating humidity: 20% ~ 85%
Feature 1: WiFi video camera
Feature 2: WiFi camera for home
Feature 3: Outdoor WiFi secur camera
Feature 4: WiFi IP camera
App/Client Name: Reolink
Model No.: WCEO5MP06PTAF
|
Comparison of Indoor & Outdoor PT WiFi Camera |
||||||
|
Model Name |

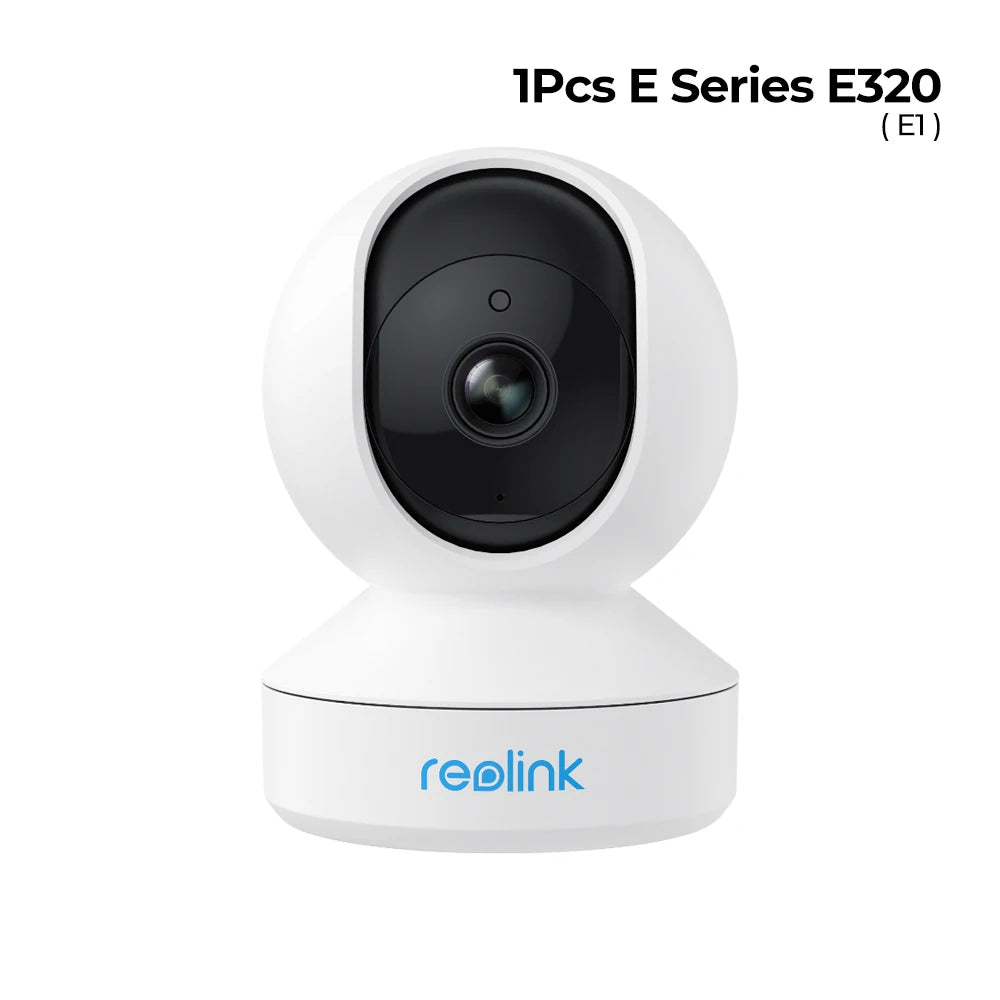

E320 |

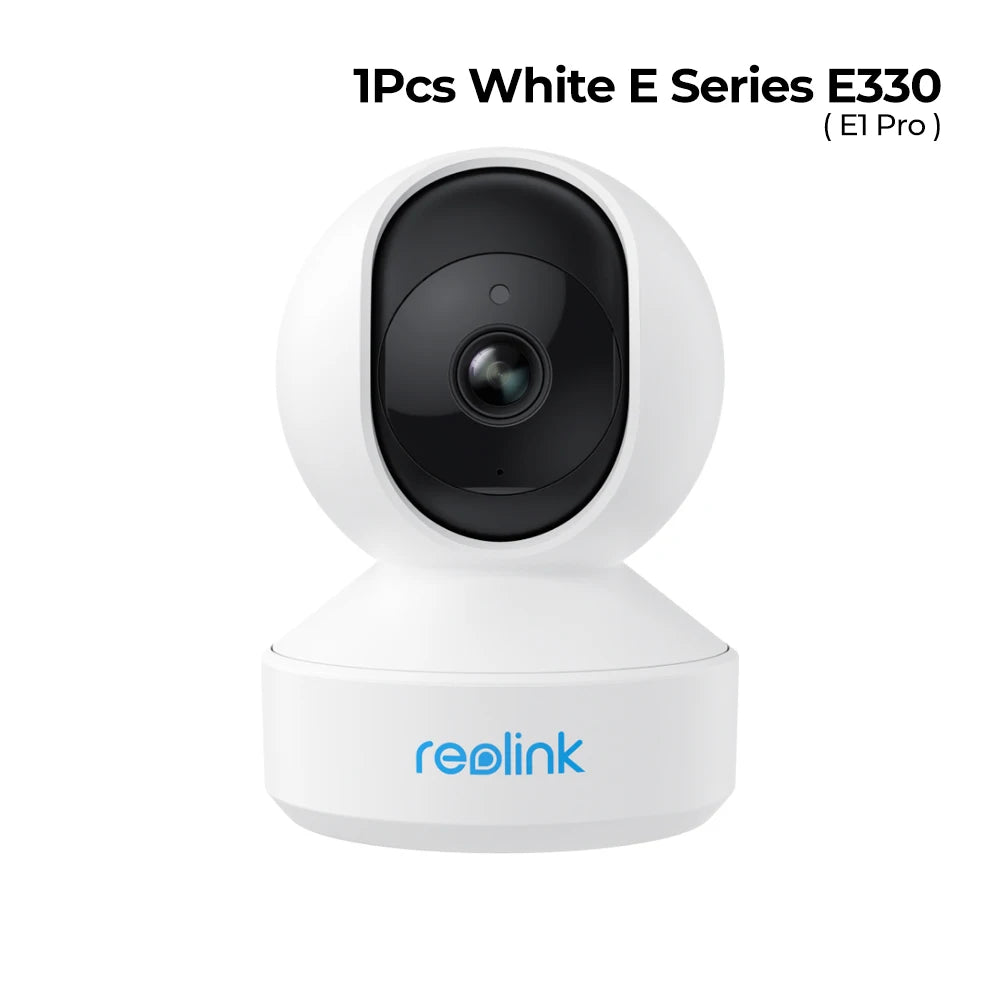

E330 |

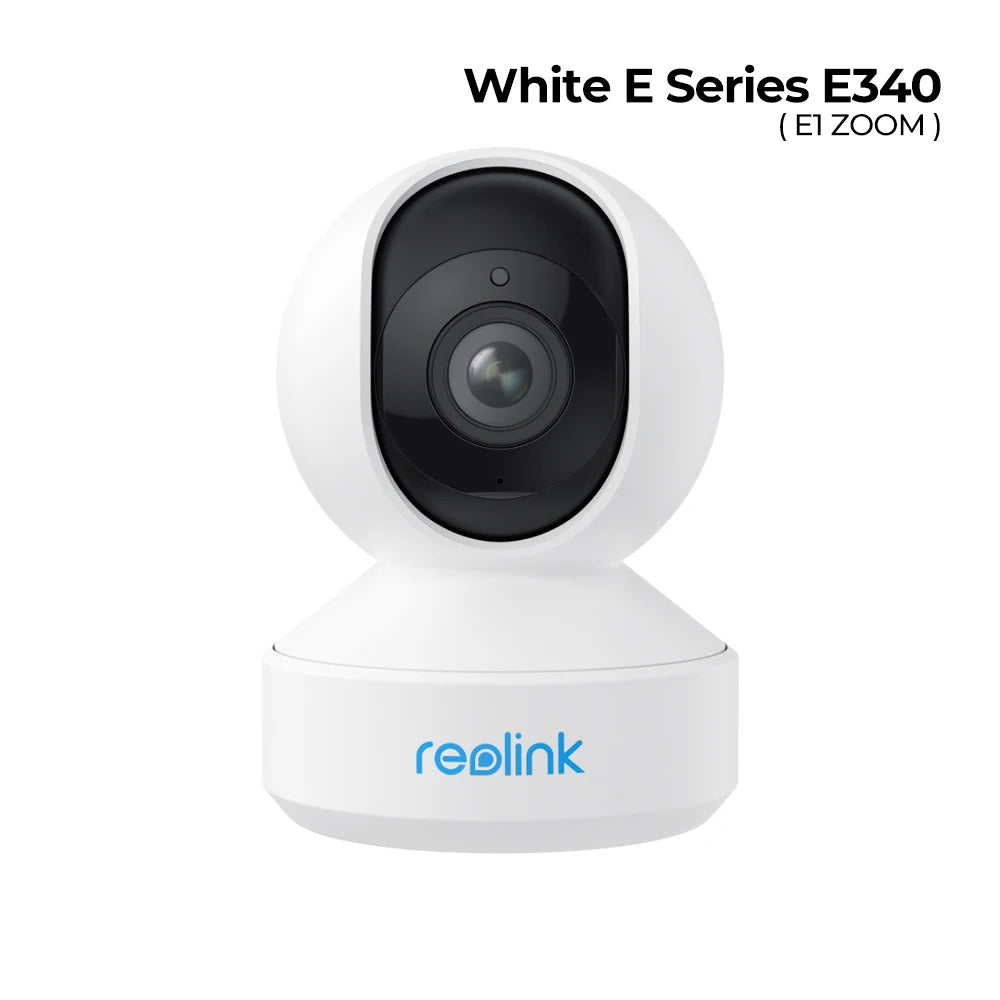

E340 |

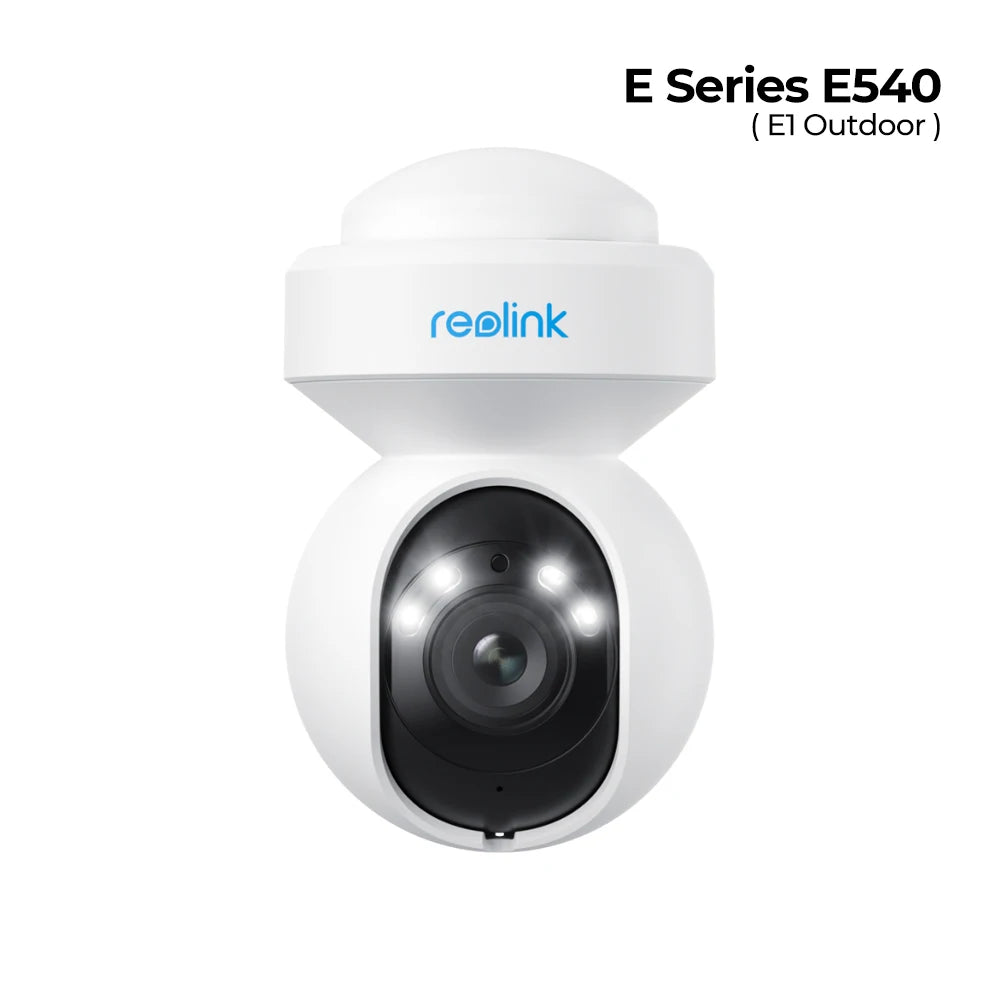

E540 |

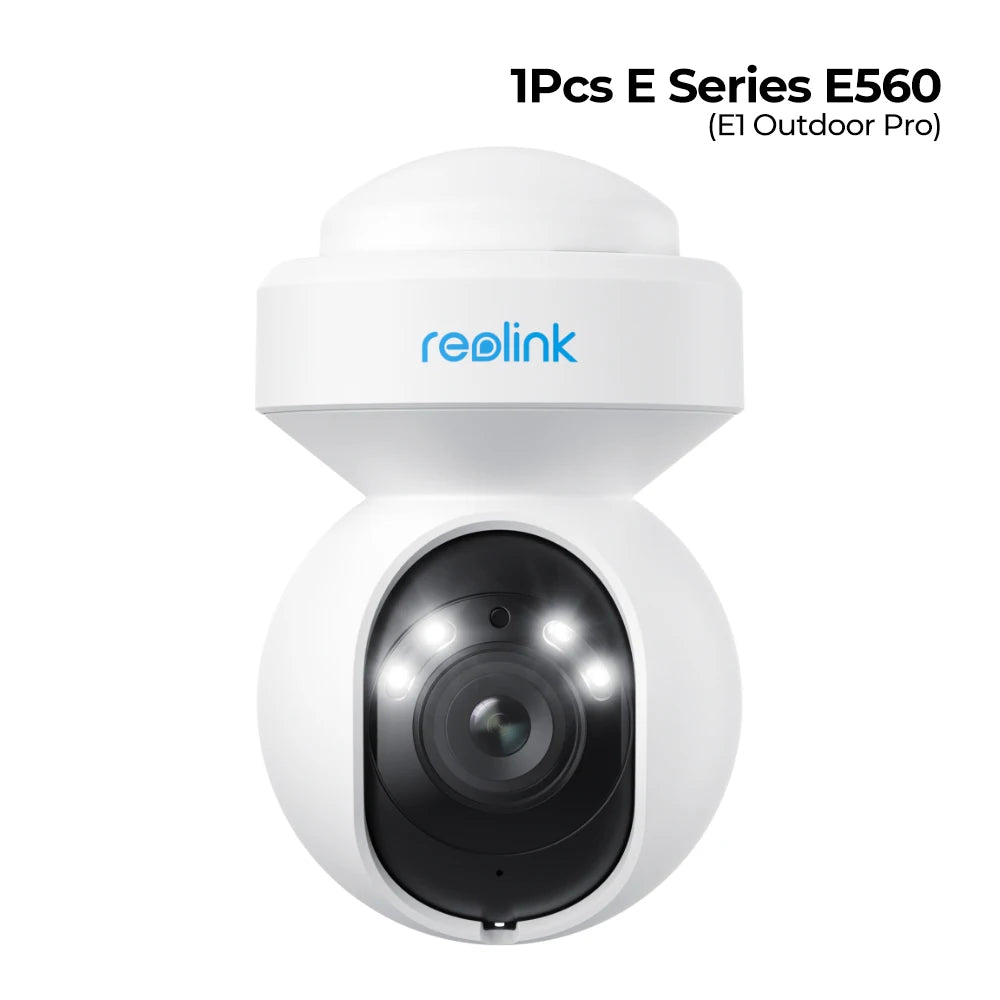

E560 |

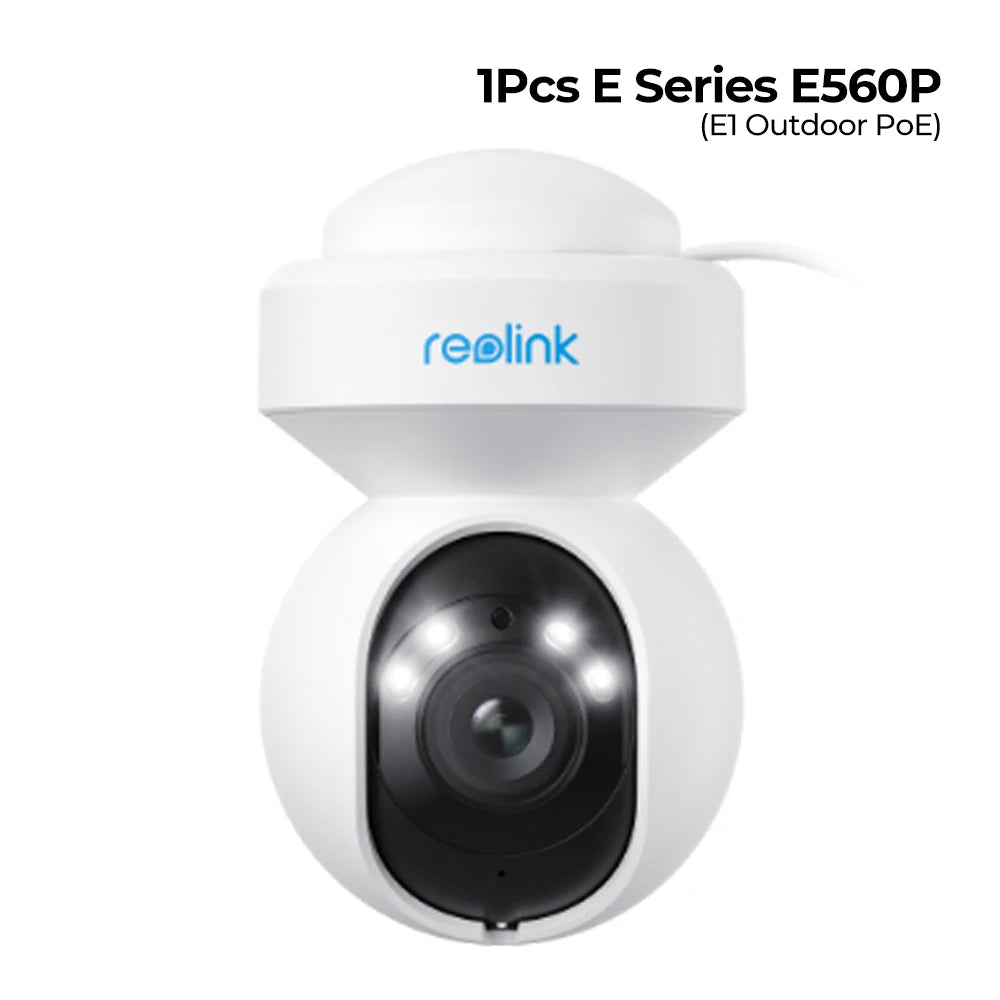

E560P |
|
Appearance |
|
|
|
|
|
|
|
Note |
For indoor use only; with IR LEDs that can be turned off. |
- |
- |
- |
||
|
Resolution |
3MP |
4MP |
5MP |
5MP |
4K 8MP |
|
|
Frame rate |
Max. 20 FPS |
Max. 25 FPS |
Max. 20 FPS |
Max. 25 FPS |
Max. 25 FPS |
Max. 25 FPS |
|
Image Sensor |
1/2.7" CMOS Sensor |
1/2.8" CMOS Sensors |
||||
|
Lens |
f=4.0mm Fixed, F=2.4, |
f=2.8-8mm Autofocus, F=1.6, |
f=2.8-8mm Max: F1.6 |
f=2.8 - 8mm, zoom module |
||
|
Field of view* |
H: 82°; V: 43° |
H: 48° - 98°; |
H: 48°- 90°; |
H: 50°- 94°; V: 30° - 53° |
||
|
Power supply method |
Power cable |
Power over Ethernet |
||||
|
Network connection |
2.4 GHz WiFi |
2.4/5 GHz dual-band WiFi |
Ethernet Cable |
|||
|
Local storage |
Max. 256 GB |
|||||
|
Number of lenses |
One |
|||||
|
Night vision |
IR night vision up to 40 ft |
Color night vision; |
||||
|
IR night vision up to 40 ft |
||||||
|
Light equipped |
IR LEDs |
Spotlights & IR LEDs |
||||
|
Audio |
With mic & speaker for 2-way audio |
With mic for audio recording |
||||
|
Waterproof |
For indoors only |
IP64 |
||||
|
Zoom |
Digital zoom only |
3X optical zoom & digital zoom |
||||
|
Pan & tilt |
355°pan & 50°tilt |
|||||
|
Tracking method |
- |
Auto tracking |
||||
|
Smart features |
Person/Pet Detection |
Person/vehicle detection |
Person/vehicle/pet detection |
|||
|
Remote access & alerts |
√ |
√ |
√ |
√ |
√ |
√ |
|
Continuous recording |
√ |
√ |
√ |
√ |
√ |
√ |
|
Time lapse |
- |
- |
- |
√ |
√ |
√ |
|
Cloud storage (Available in several countries) |
√ |
√ |
√ |
√ |
X |
X |
|
Smart home |
Google Assistant |
|||||
|
Works with Reolink PoE NVR |
√ |
√ |
√ |
√ |
√ |
√ |
|
Works with Reolink IoT devices |
√ |
√ |
√ |
√ |
√ |
√ |
|
FTP |
- |
- |
√ |
√ |
√ |
√ |
|
RTSP |
- |
√ |
√ |
√ |
√ |
√ |
|
Dimension |
Φ76x106mm |
Φ76x106mm |
Φ80x111mm |
Φ85×118mm |
Φ85x118mm |
Φ85x118mm |
|
Weight |
200g |
200g |
250g |
380g |
415g |
395g |
|
Recommended application scenarios |
Used as a baby monitor, pet cam, |
Room, courtyard, store, office, restaurant, etc. |
||||
|
Note |
*The data on the pages above are obtained under specific test conditions. |
|||||
